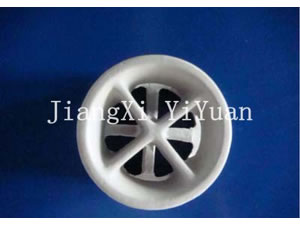

Ceramic Cascade Ring
Description:
The ceramic cascade ring is a type of random tower packing. The ratio of its height and diameter is 1:2. This, along with the conical flange added to one side of the ceramic cascade ring, dramatically eliminates the resistance of air entering through the packing bed.
This also improves the flux and reinforces the strength of the ceramic cascade ring. The specific structure makes an even distribution of gas and liquid, increases the contacting area of gas and liquid and thus improves the mass transfer efficiency.
Compared with the raschig ring, the packing height of this ceramic cascade ring is lowered by 1/2~1/3. The lower height greatly shortens the route that gas passes through the outer wall of the ceramic cascade ring. The lower height also diminishes the gas's drop pressure.
TallKee import/export is a professional manufacturer of ceramic cascade ring in China. Our company is located in Pingxiang, ceramic hometown of China. Besides, our company is quite near to Shenzhen and Shanghai ports, two largest ports in China, which makes both the shipping and air transportation quite convenient. Regarding the delivery period of this chemical cascade ring packing, 12days/20gp is for those to be exported abroad, and 7days/20gp is for the ones sold at home. Featuring good wear, corrosion, high-temperature resistance, high strength and hardness, unique design and competitive prices, our ceramic random packing has been well received by customers from Southeast Asia, Middle East, Russia, United States, Canada, South America, Japan, Korea, Singapore, Thailand, Vietnam, Myanmar and so on. If you're interested in our ceramic cascade ring, please feel free to contact us.
Specification:
ED=External Diameter H=Height T=Thickness
Name | ED×H×T (mm×mm×mm) | Bulk Numbers (n/m3) | Bulk Density (kg/m3) | Specific Surface Area (m2/m3) | Voidage (%) | Dry Filling Factor (m-1 ) |
Ceramic Cascade Ring | 76×45×7 | 2,517 | 426 | 63.4 | 0.795 | 126 |
50×30×5 | 9,091 | 516 | 108.6 | 0.787 | 223 | |
25×20×3 | 74,000 | 624 | 270.0 | 0.74 | 172 |
