Ceramic Raschig Ring

Home » Products » Ceramic Random Packing » Ceramic Raschig Ring

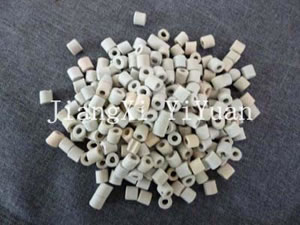

Ceramic Raschig Ring

Description:
The ceramic raschig ring is one type of ceramic random tower packing, and it is an excellent column filling.

Its shape is simple. The height and diameter of the column filling are in equal size. Generally, the rasching ring with great size (100 mm above) will be used to fulfill the objects in a whole heap; while small-size one (below 80 mm) will generally be adopted with the way of disorder heaps.

As a leading professional manufacturer and supplier of ceramic raschig ring in China, TallKee import/export can still supply customers across the globe with molecular sieve, ceramic ball, ceramic, plastic and metal random fillers, honeycomb ceramic, water treatment products, etc. All of our products have obtained ISO9001:2000 certificate, and they are widely used in electric power, petroleum, chemical industry, metallurgy, nonmetallic mine, painting, paper making, pharmacy, aeronautics and astronautics, environmental protection field and so on, such as in processes of drying, absorption, washing and regenerating towers of chemical industry, metallurgy, oxygen making fields. As a leader in industrial ceramic industry of China, we provide customized ceramic raschig ring packing according to our clients' design and manufacture requirements. Besides, free samples are available for our customers worldwide. Featuring considerate pre-sales, mid-sales and after-sales services and competitive prices, our rachig ring filler has been very popular among our customers in Southeast Asia, Middle East, Russia, United States, Canada, South America, Japan, Korea, Singapore, Thailand, Vietnam, Myanmar and so on. If you want more information of our ceramic raschig ring, please do not hesitate to contact us.

The Specifications of Ceramic Rasching Ring:

Specifications (mm) D×H×δ (mm) Specific surface (m2/m3) Void volume (m3/m3) Bulk number (n/m3) Bulk density (kg/m3) Dry packing factor (m-1)
6 6×6×1.5 789 0.73 3,110,000 737 2,030
15 15×15×2 330 0.70 720,000 690 1,280
25 25×25×2.5 235 0.78 43,000 630 784
40 40×40×4 178 0.75 12,700 560 400
50 50×50×4 136 0.81 6,000 550 305
80 80×80×6 108 0.68 1,976 714 177
