Description:

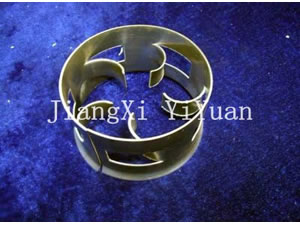

The metal cascade ring, also referred to as metal CMR-cascade mini ring, is a kind of metal random packing made of carbon steel, stainless steel or aluminum alloy, etc. It is especially suitable for vacuum distillation tower for the treatment of the materials which are thermo-sensitive, easily decomposable, easily polymerizable and carbonized, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.

Characteristics:
1. Structure
The height of metal cascade ring is the half of its diameter. There is a tapered flanging on one side and there are window holes on the surface of the metal cascade ring. And there are bending leaves which stretch to the heart of the metal CMR-cascade mini ring. All this make the structure of this kind of metal filler more special.

2. Function
Thanks to its special structure, the distribution of gas or liquid in the packing layer has been extremely improved. This structure also increases the contacting point of gas and liquid, which can reinforce the mass transfer. This also raises the separation efficiency. Compared with the pall ring, the throughout ratio can be improved by 10-20％ and the pressure drop can be reduced by30-40％. Besides, the metal cascade ring filler has thin wall, heat resistant, high capacity, low resistance, etc.

Technical data:

Specifications for MCR Packing(Carton Steel)
Packing Size	Dimension (OD×ID×H×THK)	Bulk Density kg/m3	Bulk Quantity pcs/m3	Specific Area m2/m3	Void      %	Factor m-1
0P	17×15×6×0.3	472	530	427	94	55
1P	25×22×8×0.3	270	150	230	96	40
1.5P	34×29×11×0.3	201	60.91	198	97	29
2P	43×38×14×0.4	230	33.17	164	97	22
2.5P	51×44×17×0.4	186	17.9	127	97	17
3P	66×57×21×0.4	139	8.8	105	98	14
4P	86×76×29×0.4	143	5	90	98	10
5P	131×118×41×0.6	136	1.48	65	98	7

(HG)Specifications for MCR Packing (Carton Steel)
D×H×δ mm	Pieces  1/m3	Weight kg/m3	Surface Area	Void %	Factor 1/m
76×38×1.2	3540	385	72	0.961	81
50×25×0.8	12340	385	109	0.961	123
38×19×0.6	30040	433	153	0.959	173
25×12.5×0.5	98120	459	221	0.951	257

TallKee import/export is a professional manufacturer of metal cascade ring in China. Our company is located in Pingxiang, ceramic hometown of China. Besides, our company is quite near to Shenzhen and Shanghai ports, two largest ports in China, which makes both the shipping and air transportation quite convenient. Regarding the delivery period of metal cascade rings, 12days/20gp is for those to be exported abroad, and 7days/20gp is for the ones to be sold at home. Featuring good wear, corrosion, high-temperature resistance, high strength and hardness, unique design and competitive prices, our metal CMR-cascade mini ring has been well received by customers from Southeast Asia, Middle East, Russia, United States, Canada, South America, Japan, Korea, Singapore, Thailand, Vietnam, Myanmar and so on. If you're interested in our metal cascade ring, please feel free to contact us.
