Honeycomb Ceramic for RTO, RCO

Home » Products » Honeycomb Ceramic » Honeycomb Ceramic for RTO, RCO

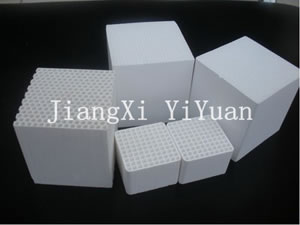

Honeycomb Ceramic for RTO, RCO

Introduction:
The honeycomb ceramic is the key part for heat storage HTAC (High Temperature Air Combustion) technology. There are a variety of materials for honeycomb ceramic, such as cordierite, activated carbon and alumina as well as fused silica. The honeycomb ceramic enjoys excellent heat capacity, thermal shock and chemical resistance.

Application:
The honeycomb ceramic for RTO, RCO has been widely applied in all kinds of pushing-steel heating furnace, RTO(regenerative thermal oxidation), stepping heating furnace, heat treatment furnace, forging furnace, dissolving furnace, steel wrapping/middle wrapping baking apparatus, soaking pit, radiation tap incendiary apparatus, covering furnace, high temperature hot-blast stove in metallurgical machine building. It can also be used in all kinds of ceramic cellar stove, glass cellar stove, tap heating stove, splitting stove and other industrial stove cellar.

As a leading professional manufacturer and supplier of honeycomb ceramic in China, TallKee import/export can still supply customers across the globe with molecular sieve, ceramic ball, ceramic, plastic and metal random fillers, honeycomb ceramic, water treatment products, etc. All of our products have obtained ISO9001:2000 certificate, and they are widely used in electric power, petroleum, chemical industry, metallurgy, nonmetallic mine, painting, paper making, pharmacy, aeronautics and astronautics, environmental protection field and so on, such as in processes of drying, absorption, washing and regenerating towers of chemical industry, metallurgy, oxygen making fields. As a leader in industrial ceramic industry of China, we provide customized honeycomb ceramic for RTO, RCO according to our clients' design and manufacture requirements. Besides, free samples are available for our customers worldwide. Featuring considerate pre-sales, mid-sales and after-sales services and competitive prices, our RTO, RCO honeycomb ceramics have been very popular among our customers in Southeast Asia, Middle East, Russia, United States, Canada, South America, Japan, Korea, Singapore, Thailand, Vietnam, Myanmar and so on. If you want more information of our honeycomb ceramic for RTO, RCO, please do not hesitate to contact us.

Technical Parameters:

Product No.
    Stoneware(alumina porcelain) Mullite-cordierite Cordierite

Weight Ratio (g/cm3) 2.4~3.0 2.3 2.4~2.5
Thermal Expansion Coefficient(Room temperature~800℃) (×10-6/℃) ≤ 6.4 4.0 3.5
Specific Heat Capacity Reference value (×103J/Kg.K) 0.85~1.20 0.80~1.10 0.80~1.20
Thermal Conductivity (20－100℃)W/M.K 1.4~2.0 1.5~2.42 1.4~2.6
Refractory Quality (℃)    ≥ 1350 1600 1400
Maximum Service Temperature (℃) 1350 1350 1300
Axial Compressive Strength (Mpa) ≥ 23 30 25
Lateral Compressive Strength (Mpa) ≥ 5 9 9
Hole Shape, Size The hole shape includes square, six angle or circular and so on. Regular size:150×150×300mm, 150×150×150mm 25holes. 43holes. 40holes and so on. It can be made according to the customer' requirements.
Hole Wall Thickness (mm) 0.5~2.0
Specific Surface Area (m2/m3) 500~1200

Chemical Composition:

Composition Stoneware(alumina porcelain) Mullite-cordierite Cordierite
SiO2 41.0~45.0 29~30 53.55
Al2O3 34.0~37.0 68~69 39.65
MgO 5.0~7.0 -- 3.4
Na2O+ K2O+CaO 1.2~1.4 0.70~0.90 <1
Fe2O3 1.3~1.5 0.50~0.70 0.65
TiO2+BaO 0.20~0.25 -- 1.5


Regular Size:

Size(mm) Hole number (mm) Hole Wall Thickness Specific Surface Area
150×150×300 25×25 1.0mm 573 m2/m3
150×150×300 32×32 0.90mm 785 m2/m3
150×150×300 40×40 0.70mm 883 m2/m3
150×150×300 43×43 0.65mm 1000 m2/m3
150×150×300 50×50 0.70mm 1050 m2/m3
150×150×300 60×60 0.50mm 1316 m2/m3

Technical Data:

Dimension (mm) Quantity of cells Wall thickness (mm) Width of cell (mm) Surface area (m2/m3) Void section (%) Weight per piece (kg)
150×150×300 25×25 1.0 4.96 580 68 4.7
150×150×300 40×40 0.7 3.03 891 65 5.5
150×150×300 50×50 0.6 2.39 1090 63 6.1
150×150×300 60×60 0.5 1.99 1303 63 6.3
150×100×100 40×40 1 2.5 784 49 1.2
150×100×100 33×33 1.1 3.0 691 52 1.13
150×100×100 20×20 2.0 5.0 392 49 1.04
100×100×100 40×40 1.0 2.5 784 49 0.81
100×100×100 33×33 1.1 3.0 691 52 0.75
100×100×100 20×20 2.0 5.0 392 49 0.68
Index Metric Unit Value
Material Density g/cm3 2.3-2.6
Average Linear Expansion (20-800) 10-6/k-1 <2.5
Special Heat Capacity KJ/kg 900-1200
Heat Conductivity W/MK 1.8-3.0
Maximum Application Temp. °C 1350
Acid resist strength witless % <4
Water Absorption % <5
