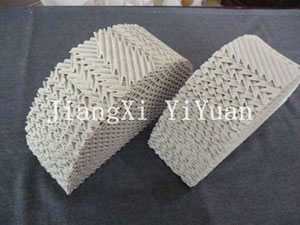

Ceramic Corrugated Packing
Description:
The ceramic corrugated (structured) packing is one of ceramic random tower filler, and it can be divided into ceramic plate packing and mesh corrugated filler according to different structures.
Features:
The ceramic corrugated packing enjoys larger specific surface area, big flux , small resistance and high efficiency. It has a good performance in corrosion resistance. The ceramic corrugated packing can work in high temperature up to more than 1000 °C. The ceramic corrugated structured packing is flexible to handle in practice. Considered these features, this kind of tower packing is quite suitable to rectify and absorb corrosive materials. Those materials have strict requirements in pressure drop and theoretical plate number.
Models:
The models of ceramic corrugated (structured) parking include 100-750X/Y(X=Obliquity 30°, Y=Obliquity 45 °). The numbers before X, Y is the surface area of ceramic corrugate parking. The diameter of packing box can be 100-8,000mm. The models of ceramic corrugate parking can also be designed according to the requirements of customers.
Physicochemical Capacity:
Acid resistance ≥99.8%
Heat resistance ≥ 100%
Moh's hardness ≥ 7
Compression resistance ≥2.0MP
Specification:
| Model | Specific Surface Area (m2/m3) | Voidage (%) | Bulk Density (kg/m3) | Wave Height (mm) | Wave Distance (mm) | Sheet Thickness (mm) | Theoretical Plate Number (m-1) | Max F Factor (M/s.) (kg/m3) | Pressure Drop (Pa/m) |
| 450 | 450 | 75 | 520 - 550 | 6.0 ± 0.5 | 12 ± 0.5 | 1.0 - 1.3 | 3 - 4 | 1.8 - 2.0 | 200 - 250 |
| 400 | 400 | 76 | 500 - 520 | 7.0±0.5 | 14 ± 0.5 | 1.0 - 1.3 | 2.8 - 3.2 | 2.0 - 2.2 | 180-260 |
| 350 | 350 | 78 | 480 - 520 | 8.0 ± 0.5 | 16±0.5 | 1.2 - 1.5 | 2.5 - 2.8 | 2.2 - 2.6 | 200 - 260 |
| 250 | 250 | 82 | 420 - 450 | 11.0±0.5 | 22 ± 0.5 | 1.2 - 1.5 | 2.3 - 2.5 | 2.6 - 2.8 | 220 - 280 |
| 160 | 160 | 86 | 350 - 380 | 17.0 ± 0.5 | 34 ± 0.5 | 1.5 - 2.0 | 1.8 - 2.0 | 2.8 - 3.0 | 250 - 300 |
| 125 | 125 | 87 | 300 - 350 | 23.0±0.5 | 42 ± 0.5 | 2.0 - 2.5 | 1.5 - 1.8 | 3.0 - 3.2 | 280 - 350 |
| 100 | 100 | 90 | 220 - 250 | 30.0 ± 0.5 | 50±0.5 | 2.0 - 2.5 | 1 | 3.5 | 250 - 300 |
TallKee import/export is a professional manufacturer of ceramic corrugated (structured) packing in China. Our company is located in Pingxiang, ceramic hometown of China. Besides, our company is quite near to Shenzhen and Shanghai ports, two largest ports in China, which makes both the shipping and air transportation quite convenient. Regarding the delivery period of ceramic corrugated packing, 12days/20gp is for those to be exported abroad, and 7days/20gp is for the ones sold at home. Featuring good wear, corrosion, high-temperature resistance, high strength and hardness, unique design and competitive prices, our ceramic tower packing has been well received by customers from Southeast Asia, Middle East, Russia, United States, Canada, South America, Japan, Korea, Singapore, Thailand, Vietnam, Myanmar and so on. If you're interested in our ceramic corrugated packing, please feel free to contact us.
