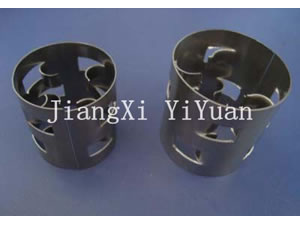

Metal Pall Ring

Description:
The metal pall ring(carbon steel, 304.316.410) is a common kind of metal random tower packing or filler. It can be widely used in packing tower of petroleum chemical industry, chemical fertilizer, environment protection, etc.

Characteristics:
Compared with Raschig ring, metal pall ring enjoys the following advantages:
1. Better distribution of gas or liquid in the packing layer. The surface of the packing layer can be easily moisturized so that the internal surface can be completely used.
2. Larger go-through capacity yet low pressure drop.
3. Higher separation efficiency of the packing tower.
4. Much more flexible in operation.

TallKee import/export is a professional manufacturer of metal pall ring in China. Our company is located in Pingxiang, ceramic hometown of China. Besides, our company is quite near to Shenzhen and Shanghai ports, two largest ports in China, which makes both the shipping and air transportation quite convenient. Regarding the delivery period of metal pall ring(carbon steel, 304.316.410), 12days/20gp is for those to be exported abroad, and 7days/20gp is for the ones to be sold at home. Featuring good wear, corrosion, high-temperature resistance, high strength and hardness, unique design and competitive prices, our metal pall packing has been well received by customers from Southeast Asia, Middle East, Russia, United States, Canada, South America, Japan, Korea, Singapore, Thailand, Vietnam, Myanmar and so on. If you're interested in our metal pall ring, please feel free to contact us.

Technical Data:

Specification Number per volume Surface-area Void volume Dry packing factor
D×H×δ (mm) n/m3 m2/m3 % 　
16×16×0.4 185,000 239 0.928 299
25×25×0.6 51,900 219 0.934 269
38×38×0.8 13,800 129 0.945 153
50×50×1 6,500 112.3 0.949 131

Geometric Feature Data:

Name External Diameter (mm) External Diameter ×H×T (mm×mm× mm) Bulk Number (n/m3) Bulk Density (kg/m3) Specific Surface Area (m2/m3) Voidage (%) Dry Filling Factor  (m-1)
Metal Pall Ring 50 50×50×1 6,500 395 112.3 0.949 131
38 38×38×0.8 13,000 365 129 0.945 153
25 25×25×0.6 55,900 427 219 0.934 269
16 16×16×0.8 143,000 216 239 0.928 299
