Honeycomb Ceramic Filter Plate
Introduction:

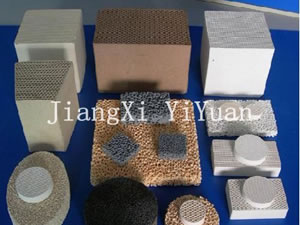

The honeycomb ceramic filter plate is a kind of extruded ceramic filter that has large specific surface area and high porosity. This enable the honeycomb ceramic filter plate filter and adsorb the smallest inclusions mingled in the molten metal fluid. Due to its unique rectifier function the honeycomb ceramic filter plate can be applicable to the foundry industry which has different requirements of refractoriness and casting speed. Generally speaking, the honeycomb ceramic filter plate can be made from cordierite, mullite, cordierite/mullite., cordierite and mullite, etc. It can be used in grey iron, nodular cast iron, aluminum alloy, stainless steel, etc
Product Features:
1. The honeycomb ceramic filter plate has good thermal shock resistance, metal liquid flow resistance and high strength as well as larger specific surface area.
2. Thanks to advanced extrusion process, we can provide filters with different shapes and hole densities, such as round hole type, square hole type, triangle hole type for the customer.
3. This kind of extruded ceramic filters have strict appearance size control technology. They are completely suitable for the production line in which the honeycomb ceramic filter is automatically equipped.
Physical and Chemical Performance Index:
| Item | Index |
| Opening Rate (%) | 80~90 |
| Maximum Working Temperature (℃) | 1550 |
| Density (g/cm3) | 0.7～1.8 |
| Compressive Resistance (Mpa) | ＞15 |
| Thermal Shock Resistance (times/1100℃) | ＞6 |
| SiO2 (%) | 38~42 |
| Al2O3 (%) | 53~57 |
| Fe2O3 (%) | ＜1.5 |
| TiO2 (%) | ＜1.5 |
| Items | Parameters |
| Porosity (%) | 80~90 |
| Max. Operating Temperature(℃) | 1550 |
| Bulk Density (g/cm3) | 0.7～1.8 |
| Compression Strength(Mpa) | ＞15 |
| Thermal Shock Resistance(times/1100℃) | ＞6 |
| SiO2 (%) | 38~42 |
| Al2O3 (%) | 53~57 |
| Fe2O3 (%) | ＜1.5 |
| TiO2 (%) | ＜1.5 |
TallKee import/export is a professional manufacturer of honeycomb ceramic filter plate in China. Our company is located in Pingxiang, ceramic hometown of China. Besides, our company is quite near to Shenzhen and Shanghai ports, two largest ports in China, which makes both the shipping and air transportation quite convenient. Regarding the delivery period of our ceramic filter plates, 12days/20gp is for those to be exported abroad, and 7days/20gp is for the ones to be sold at home. Featuring good wear, corrosion, high-temperature resistance, high strength and hardness, unique design and competitive prices, our honeycomb ceramic filter plate has been well received by customers from Southeast Asia, Middle East, Russia, United States, Canada, South America, Japan, Korea, Singapore, Thailand, Vietnam, Myanmar and so on. If you're interested in our honeycomb ceramic filter plate, please feel free to contact us.
